This special RC can be customized in the way you want.
The ST12D Remote Controller is a 12-channel controller that is optimized for drone racing, Striker, and pest-control drones. Its luxurious design and touch LCD panel make it easier for you to control and set up. It is equipped with 10 custom mixing programs for users of various controlling styles. It also supports 180˚/ 270˚ servo, software customization, and is compatible with large rudder angle servo.
Compatible with not only drones but also with airplanes, vehicles, ships, dual engines, dual-motor robots, and dual-motor boats, ST12D is a multi-ability RC that has excellent general availability since it contains 12 channels and has a fast reaction speed. Whenever you forget to operate some parts during RC control, ST12D will tell you right away through audio guidance, so there's no need to worry. What is special about this RC is that it is equipped with a rubber dust stopper around the throttle area, thus protecting the RC throttle from getting stiff due to dust.
-
Wireless Data Copy
-
Touch Screen
-
Dual Engine
-
Audio Guidance
-
Dust Stopper
-
Receiver Port Setting
-
12 channels
-
New FM Protocol
-
10 Mixing Control
-
USB Online Upgrade
-
User Custom Channel
Affordable but Luxurious.
Affordable price doesn't always mean it is of cheap quality. The quality of the throttle stick has been proved by many existing users already.

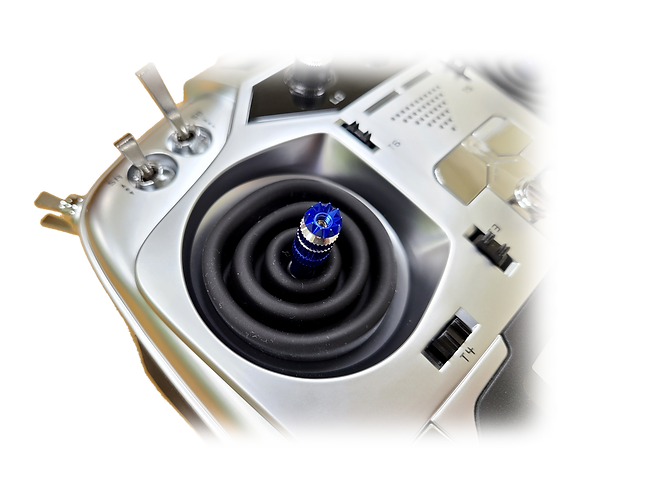

Protection from Dust.
Equipped with a rubber dust stopper around the throttle area, the RC throttle is prevented from getting stiff due to dust.
RF201S Receiver Compatibility
There is no need to change the receiver in the RC for Striker. Just use ST12D.
Receiver Port Setting
The smooth screen display is enabled for all channels with a high resolution of 4096.
Switch Customization
All keys on the ST12D controller, including switches, lockers, and rotary knob, etc. can be customized according to user's preference.
Wireless Data Copy
You can transfer data from the transceiver to another ST12D controller wirelessly. (Only possible with the same ST12 controller, RF209S receiver and the same firmware.)
New FH (Frequency Hopping) Protocol
With bi-directional transmission, 64 points of frequency hopping, and 3.6ms of low-latency hopping system, it lets you feel the rapid controlling sense of the controller.
Colorful Touch Screen
ST12D supports both English and Korean. Equipped with a touch screen, there is no need to press buttons like other RCs of existing third-parties. You just need to touch the screen to move on to your desired menu.
10 Different Program Mixing
The user can mix 10 different channels in a desired way.
Online Upgrade
The free firmware update is possible online by connecting a USB cable with the computer.
(Cable has to be purchased separately. Only supports Windows OS)
ST12D SPECIFICATION
ST12D Remote Controller
Model
Channel
Operating Voltage
Supported Products
Resolution
Frequency Band
Frequency Hopping
Data Save
Mixing
Language
Upgrade
Display
Servo
ST12D
12 channels
3.7V - 6V (1-cell Lithium battery or
18650 Lithium-ion battery x 2)
Helicopter, V.T.O.L, drone, robot,
vehicle, boat etc.
Full-channel 4096 resolution
2.4GHz (Bi-direction)
FHSS (64-point, 3.6ms)
30 groups
10
English, Korean
USB online upgrade
Colorful touch screen
180°, 270° supported
RF209S Remote Controller
Model
Frequency Band
Operating Voltage
Supported Products
Resolution
W.BUS
Bi-direction Sending
180°, 270°
Receiver Port Setting
External Voltage Detection
RF209S
2.4GHz
3.8V - 6.5V
Helicopter, V.T.O.L, drone, robot,
vehicle, boat etc.
Full-channel 4096 (PPM),
2048 (W.BUS)
Supported
Supported
Supported
Supported
DC 0 - 36V
